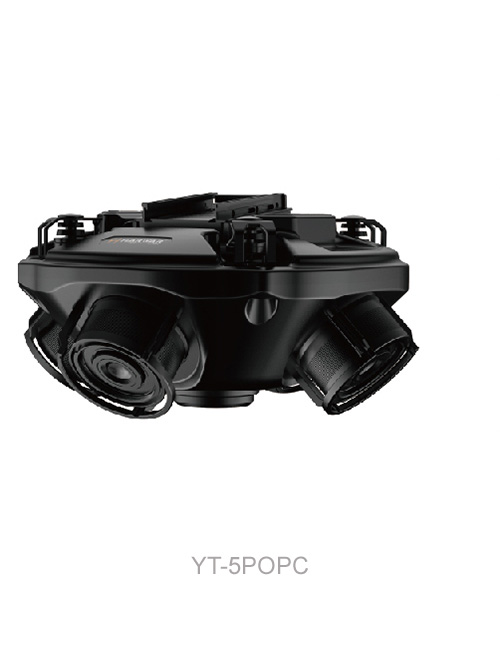

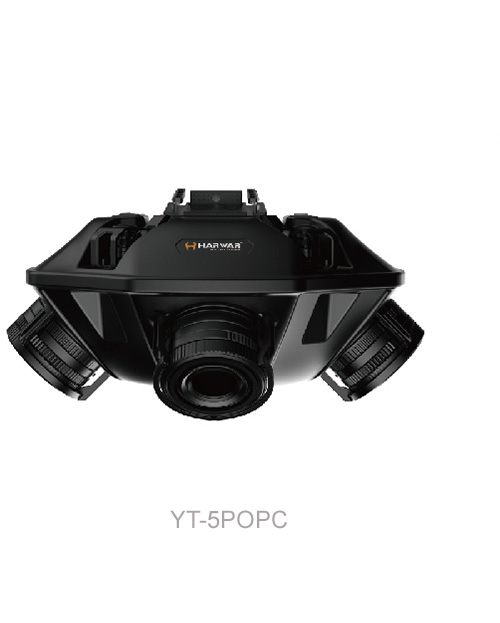

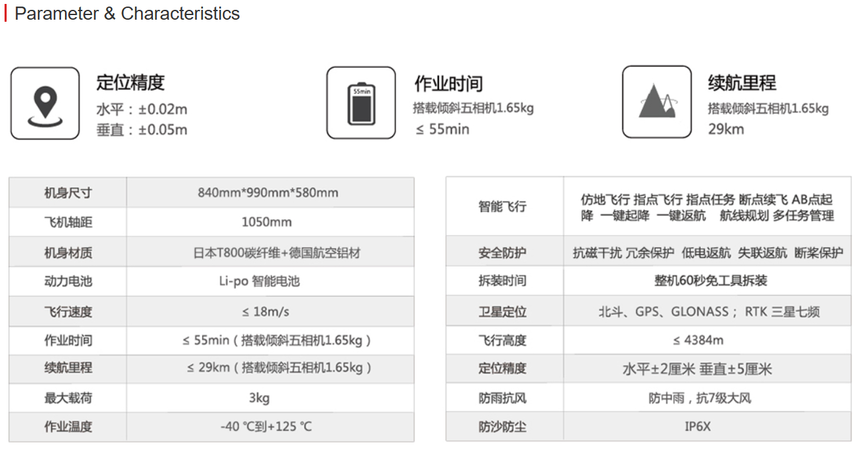

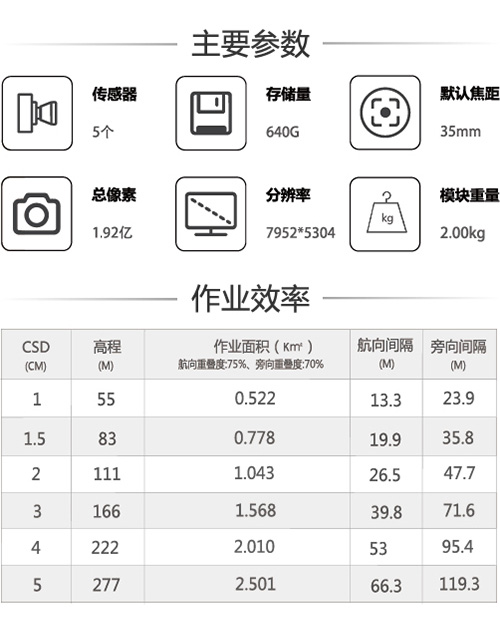

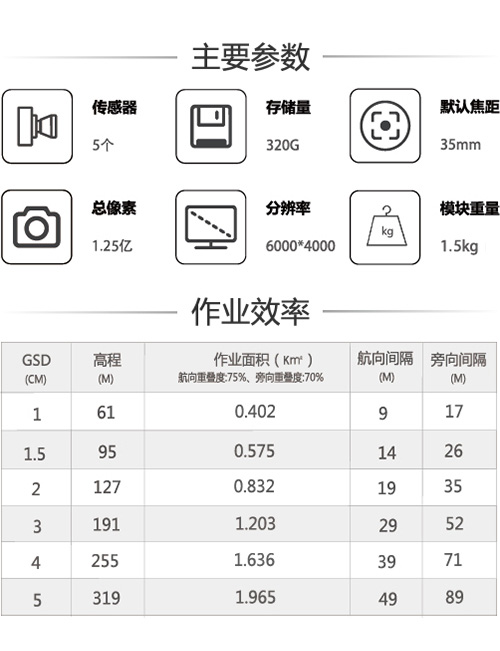

Mapping UAV (MEGA-V8)Key features: 1. High efficiency and long endurance (intelligent, efficient; It is equipped with a tilting five-camera module III (weight: 1.60 kg) in a single flight, and has a battery life of 55 minutes. 1:500 accuracy, inclined operation up to 0.66k㎡ (GSD: 2cm, course overlap: 80%, side overlap 80%)) 2. High-precision mapping (support PPK/RTK and its fusion operation mode.) It can achieve 1:500 mapping accuracy of scarce control points or no control points under certain conditions. 3. High speed and stability (high quality, high performance, high adaptability; Quick operation, quick start, quick disassembly and assembly; Multi-line safety protection, a number of quality inspection certifications; Centimeter-level positioning, precise control)
Collect

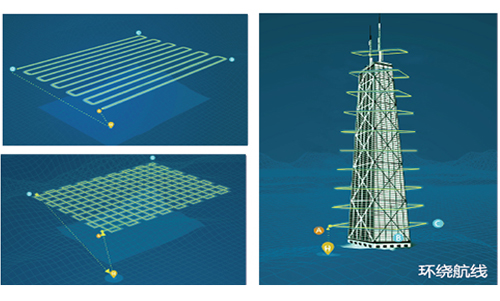

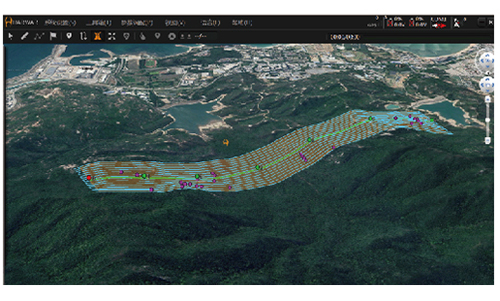

Aerial Survey Software/Mapping & Soft Professional control software for surveying and mapping, guided control interface, and advanced flight control algorithms can intelligently generate the best flight plan, automatic flight, and intelligent operation.

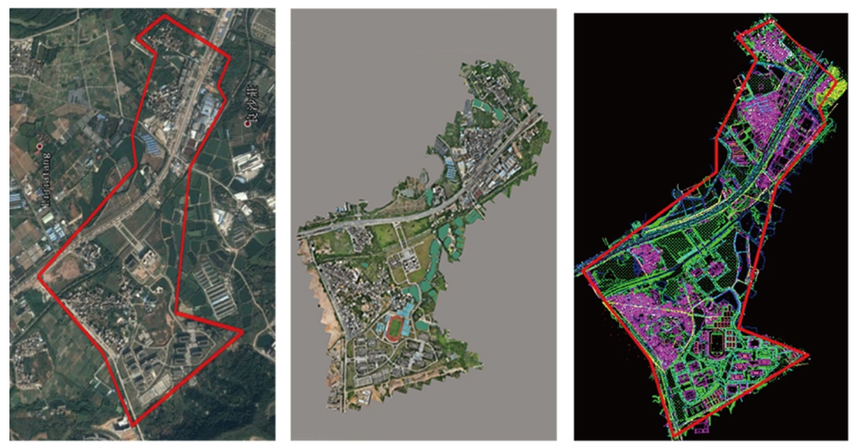

Application & Case Guangzhou Urban Planning Survey and Design Institute 1:500 cadastral topographic survey project The project is Mali Village, Zhongluotan Town, Baiyun District, Guangzhou City, with an area of about 1.53 square kilometers. The Hawa mapping UAV MEGA platform is used to carry the tilt Five cameras for aerial survey operations
|
