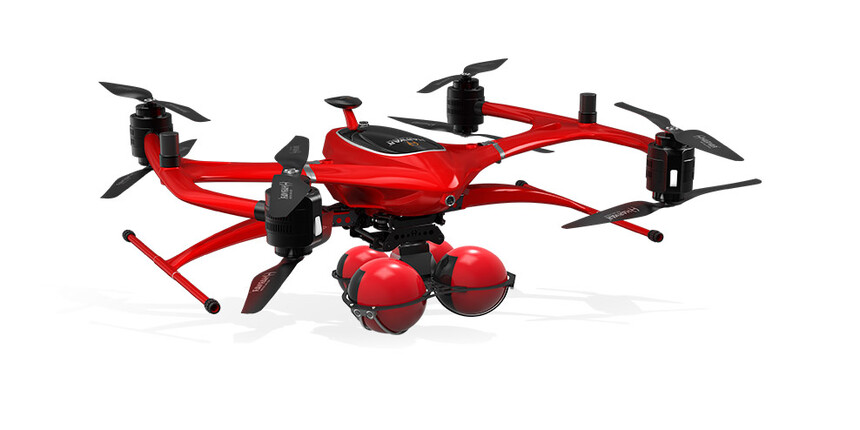

Product Name: UAV Fire Extinguishing Ball Deployment System Module
Product Weight: 645±10g (excluding fire extinguishing balls), 5645±50g (including 4 fire extinguishing balls)
Power Supply Voltage: 16.8V-25.2V (4S Lipo-6S Lipo)
Operating Environment: -10 to 50°C
Servo Speed (no load): 0.14 sec/60°
Electrical Characteristics: Static current 200mA, dynamic current 2A
Communication Interface: Serial/S.BUS
Product Dimensions: 182158265mm
Parameter Adjustment Software Installation Environment: Windows XP SP3; Windows 7; Windows 8
Peripheral Devices: S-BUS receiver; remote control; Harwar International produced ground station
Fire Extinguishing Range: The fire extinguishing range of a single fire extinguishing ball is 5-8 square meters; with 4 balls, the range is 20-30 square meters.
Camera: The system includes a built-in mini camera at the bottom for precise positioning and monitoring of the deployment effects.
Applicable Scenarios: The Harwar UAV Fire Extinguishing Ball Deployment System Module can simultaneously carry 4 dry powder fire extinguishing balls and deploy them in concentrated or dispersed throws based on the fire situation. It is suitable for emergency fire extinguishing in chemical plants, forests, maritime vessels, residential areas, and other fire scenes, capable of effectively extinguishing large fires of 20 cubic meters in a short time, ensuring the safety of lives and property at the fire scene.
